Self navigation, auto path planning

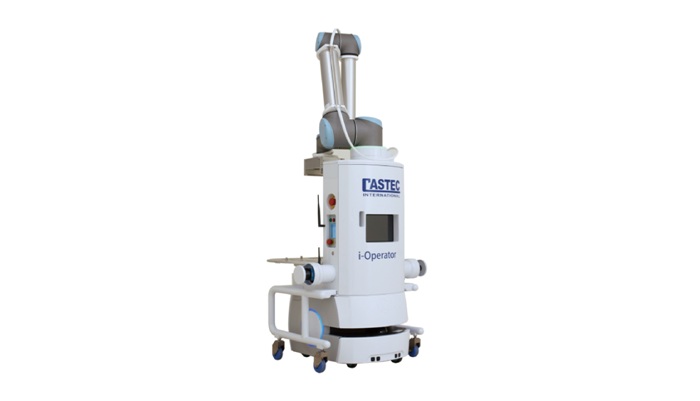

Mobile Robot Solution iO-5/iO-10
i-Operator series offer a mobile robot solution using a safe, 6-axis collaborative robot arm at 5~10kg payload.
i-Operator navigates by itself through a digital map. It does not require magnetic tape track, and does its own path planning. Using a central control platform and a user-friendly interface, i-Operator provides an excellent automated delivery solution for enterprises.
*Note: i-Operator series conform to SEMI S2 standard and for use in semiconductor manufacturing environments.
i-Operator navigates by itself through a digital map. It does not require magnetic tape track, and does its own path planning. Using a central control platform and a user-friendly interface, i-Operator provides an excellent automated delivery solution for enterprises.
*Note: i-Operator series conform to SEMI S2 standard and for use in semiconductor manufacturing environments.
FEATURES
FEATURES
No magnetic tape track needed
Automatic obstacles avoidance. Automatic new path identification if path is being blocked
Dynamic path planning
Remote monitoring
Automatic charging
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
| Model | iO-5 | iO-10 |
|---|---|---|
| Robot Payload (Max.) |
5 kg
|
10 kg
|
| Dimensions |
L 727 x W 570 x H 1555 mm
|
L 697 x W 698 x H 1896 mm
|
| Robot Reach |
1,100 mm or more
|
1,300 mm or more |
| Power |
Battery: 22 - 29 VDC LiFeP04
Run Time: 240 - 260 min (Continuous)
Charge Time: 40 - 60 min
|
|
| Mobility Speed | 600 - 1,000 mm/s | |
