Turbodynamics ATE Test Trolleys transport testheads weighing from 275kg to 750kg safely and easily. Modular mounts, universal usability and ergonomic design make our trolleys flexible and easy to use throughout all of your production. A compact design saves space and provides easy and intuitive access to all controls.

ATE Storage System is designed to handle increasing wafer sizes from 8" to 12", effectively protecting high-value test accessories and reducing operator-induced damage, ensuring the safe storage and handling of sensitive accessories in semiconductor testing.

FEATURES

【Test Trolleys】

Suitable for testheads weighing from 275kg to 750kg

Mobile Manipulator widely compatible with mainstream IC automated test equipment (Advantest, Teradyne, Cohu, NI, etc.)

Feature patented TD P-Docking technology (semi-automatic docking mechanism, docking force > 450kg)

Can be docked semi-automatically to Probers or Horizontal Handlers in combination with P-Dock® systems

Available for manual guidance or partially motorized operation

High degree of freedom on all axes ensures easy positioning (vertical travel, side-to-side, linear in/out, twist, swing, tumble, theta)

【Storage System】

Fully automated retrieval and storage system providing a safe and stable environment for high-value test accessories

Modular design for maximum flexibility

Defined process for highest requirements

Cost efficiency through automation and ergonomic design

Combined with Trolleys semi-automatic transport equipment, can effectively protecting high-value test accessories and reducing operator-induced damage

FUNCTION DESCRIPTION

Universal Trolley
Final Test Trolley
Probe Card Trolley

【Universal Trolley】

Model	TD1350 / Tiger200	TD1280 / Tiger400
Main Features	Flexible, compact and economic design Vertical movement (electrical) Testhead leveling at all positions
Weight Capacity	~ 250 kg / ~ 550 lbs	~ 400 kg / ~ 880 lbs
Standard Motions	Vertical travel (electrical) Side-to-side Linear in/out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in/out Twist Swing Tumble Theta
Compatible Testheads	SPEA DOT800 NI T2 LTXC Fusion MX Cohu Diamond X 1 Teradyne ETS364 Advantest V93000 ATH Others on request	NI T4 Advantest T5581 Teradyne Ultraflex 12 Slot Others on request

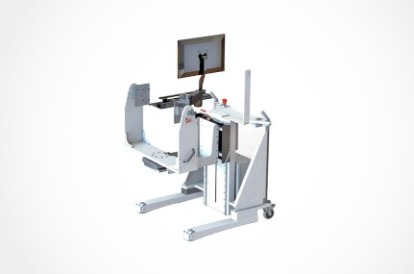

【Final Test Trolley】

Model	TD1255 / Tiger150	TD1275 / Tiger300	TD1285 / Tiger400	TD1295 / Tiger500
Main Features	Flexible, compact and economic design Vertical movement (electrical) Testhead leveling at all positions
Weight Capacity	~ 150 kg / ~ 330 lbs	~ 300 kg / ~ 660 lbs	~ 400 kg / ~ 880 lbs	~ 500 kg / ~ 1100 lbs
Standard Motions	Vertical travel (electrical) Side-to-side Linear in/out Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in/out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in/out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in/out Twist Swing Tumble Theta
Compatible Testheads	Teradyne ETS364 NI T1 LTX Diamond X SPEA DOT400 Others on request	NI T2 Others on request	NI T4 Teradyne Microflex Others on request	NI T4 Teradyne Microflex Teradyne J750 Teradyne U-Flex 12 Slot Others on request

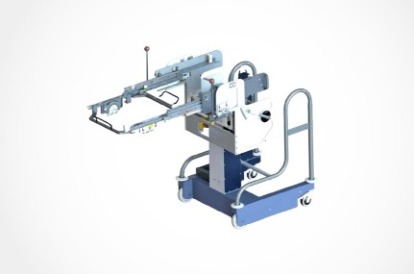

【Probe Card Trolley】

Model	TD1095	TD1090
Main Features	Error-free Load Board feeding and removal Reliable Load Board transport Damage prevention Retrofit to all common Probers Multipurpose usage One system per test floor required Ready for AGV (Automated Guided Vehicle) interaction	Error-free Probe card feeding and removal Reliable Probe card transport Damage prevention Retrofit to all common Probers Multipurpose usage One system per test floor required
