ATE Manipulator

Turbodynamics ATE Manipulator series (TDM10, TDM20, TD2080) are designed for semiconductor automated test accessories, capable of accurately and effortlessly positioning testheads weighing from 120kg to 500kg to the Handler or Prober.

ATE Manipulator series are widely compatible with mainstream IC automated test equipment (Advantest, Teradyne, Cohu, NI, etc.) and features the patented TD P-Docking technology (SemiAuto Docking Mechanism, docking force > 450kg). ATE Manipulators have a flexible, compact, and economical design, meeting various needs and improving work efficiency.

FEATURES

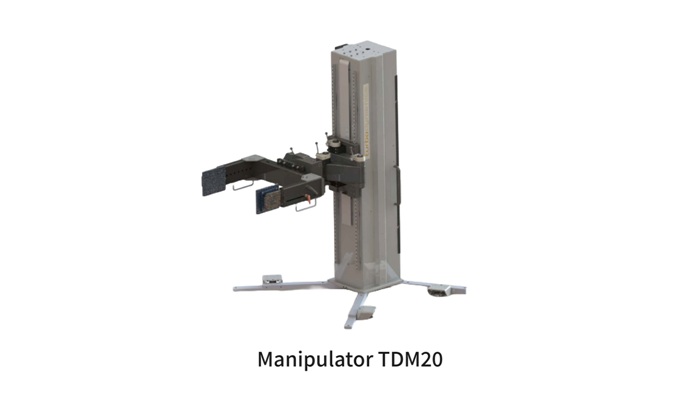

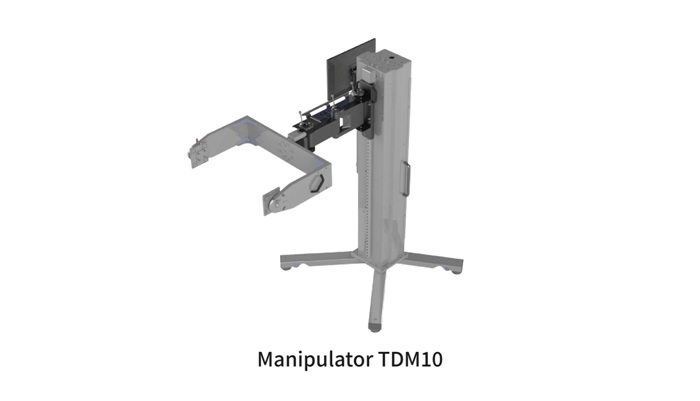

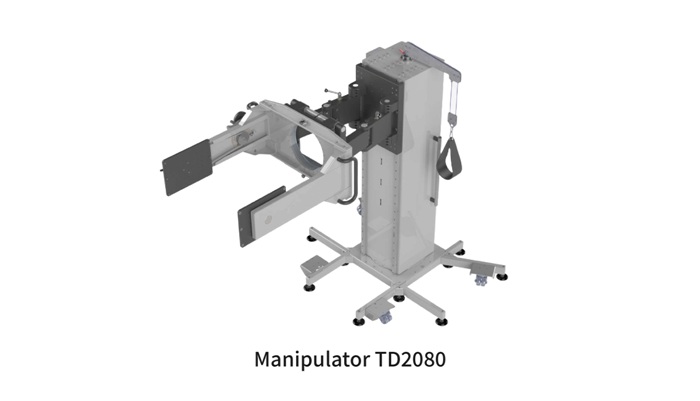

TDM10	TDM20	TD2080
Flexible, compact and economic design Testhead leveling at all positions Convenient fork adjustment	Flexible, compact and economic design Testhead leveling at all positions Convenient fork adjustment	Flexible, compact and economic design Testhead leveling at all positions Convenient fork adjustment
One arm solution allows surrounding docking (180°)	One arm solution allows surrounding docking (180°)	Two arm solution allows surrounding docking (200°)
Can be equipped with a PC Rack and a keyboard holder	Can be equipped with a PC Rack and a keyboard holder	Rotational column
Different add-on parts (Monitor holder, Cable management, etc.)		Dynamic cable management

PRODUCT SPECIFICATIONS

	TDM10	TDM20	TD2080
Weight Capacity	~ 120 kg / ~ 265 lbs	~ 300 kg / ~ 660 lbs	~ 470 kg / ~ 1040 lbs
Standard Motions	vertical travel side-to-side linear in/out twist swing tumble theta	vertical travel side-to-side linear in/out twist swing tumble theta	vertical travel side-to-side linear in/out twist swing tumble theta
Compatible Testheads	LTX D10 LTX DiamondX LTX DxV NI T1 Eagle ETS300 Credence ASL1000 Microtest DMT Others on request	LTX D10 LTX DiamondX LTX Fusion MX NI T2 Advantest V93K ATH Others on request	Teradyne ETS800 / J750 / Microflex Advantest T2000 / V93K CTH SPEA C600 Northstar MX2 Others on request
