TPMS Tester
Jetek TPMS 64 Tester is a flexible and powerful TPMS components tester. The tester supports multi-components measurement in parallel. That can be expanded to more than 64 sites flexible. The TPMS parameters(P-sensot, T-sensor, A-sensor) will be measured on one station.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
| Test Item | |
|---|---|
| Electrical |
|
| Sensor |
|
| Calibration and trimming | |
FEATURES
FEATURES
The highest 25MHz base clock for device
Programmable power level (-2~6V)
Programmable GPIO clock rate (under 25MHz)
1.2 / 1.5 / 1.8 / 2.5 / 3.3V IO logic level
Programmable 512 I/O pins for customized pattern of devices

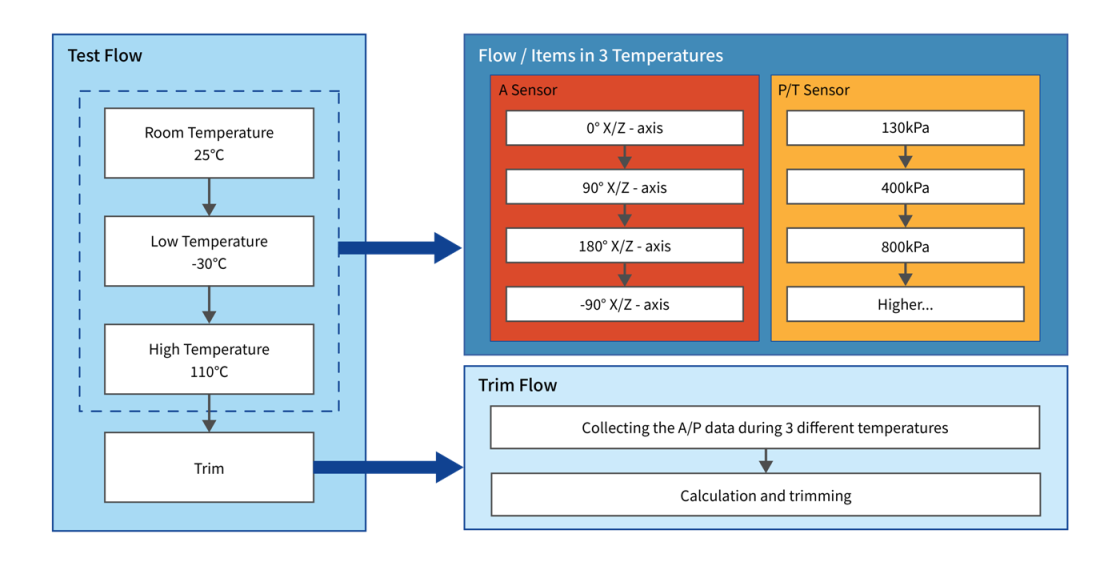

Supporting sensor calibration and trimming on 3 or more different pressures environment under different temperatures
Calibrate the different temperatures, pressures and angle acceleration at ONE station
