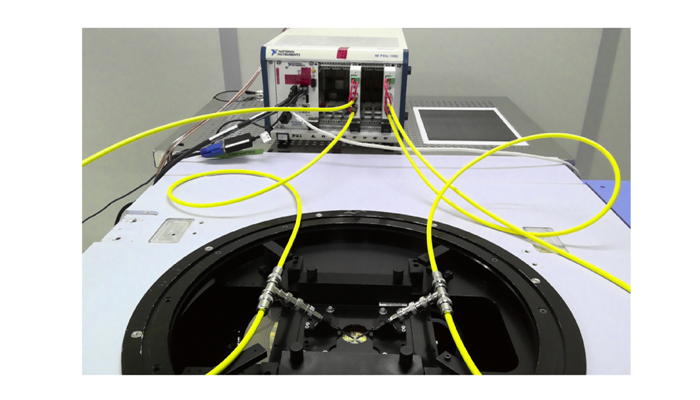

GaN RF Tester

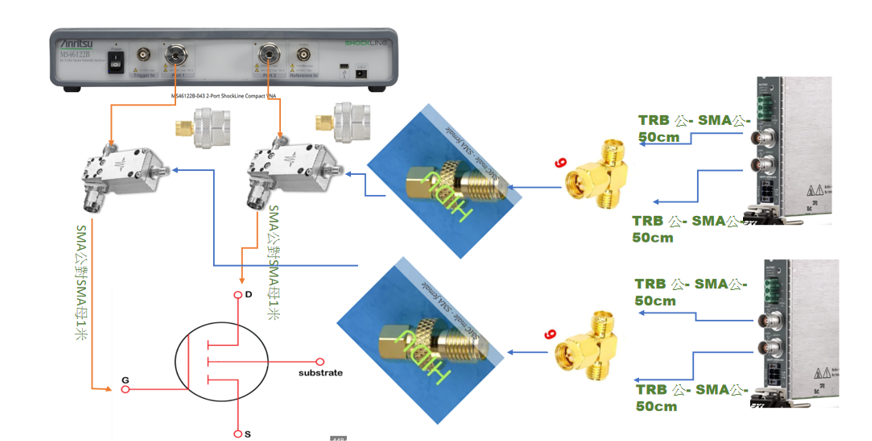

GaN RF Tester is a Gallium Nitride (GaN) characteristic testing equipment that can support 200V high-voltage testing and control channel changes during G/D potential analysis transition. The channel supports DC Pulse Mode characteristic testing and can be used with VNA for RF S-parameter curve analysis.
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
FEATURES
FEATURES
GaN I/V Characteristic curve measurement
Support obtaining 1M ~ 20G RF S-parameter/P-parameter
4 channel high voltage/high current SMU
Support DC-Pulse mode measurement
Programmable test process
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
| High Current Specification | |
|---|---|
| DC voltage ranges |
600mV 6V 60V |
| DC current source and sink ranges |
1µA 10µA 100µA 1mA 10mA 100mA 1A 3A 10A, pulse only |
| High Voltage Specification | |
|---|---|
| DC voltage ranges |
600mV 6V 20V 200V |
| DC current source and sink ranges |
10nA 1µA 100µA 1mA 10mA 100mA 1A 3A |
