ATE配件传输设备及储存系统

Turbodynamics的ATE配件传输设备，能安全运输重达275 kg至750 kg的测试头。这些设备具备模块化安装、通用性及人体工学设计，适用于各种生产环境，并提供灵活、简便的操作体验和空间节省。

ATE测试配件储存系统旨在应对晶圆尺寸增大（从8"到12"），有效保护高价值测试配件并降低人为操作损害，确保半导体测试中高价值测试配件的安全储存和处理。

产品介绍下载

FEATURES

产品特色

FEATURES

【测试机 & 配件传送设备】

适用重量范围275kg至750kg的测试头

Mobile Manipulator广泛支持主流IC自动测试机（Advantest、Teradyne、Cohu、NI等）

采用专利TD P-Docking接合技术（半自动接合机制，接合力超过450kg）

可与P-Dock®系统结合，半自动对接到探针台或水平分选机

可用于手动引导或部分电动操作

高自由度设计，确保垂直、横向移动、直线进出、旋转、摆动、翻滚和θ方向的轻松定位

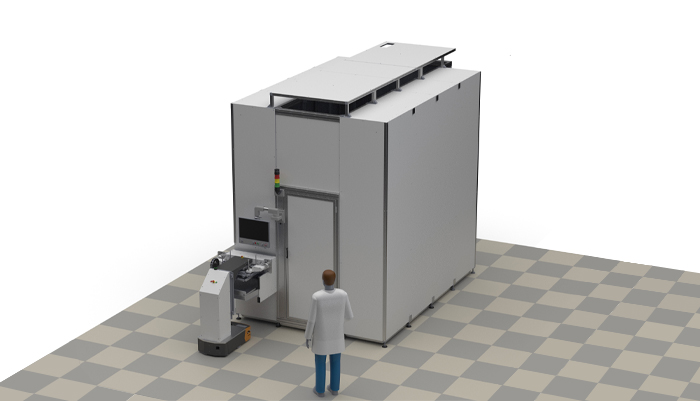

【测试配件储存系统】

全自动取放装置设计，提供高价值测试配件的安全稳定储存环境

模组化设计，提供最大灵活性

满足最高要求的定义流程

通过自动化和人体工学设计实现成本效益

搭配Trolleys半自动配件传送设备，有效保护高价值测试配件并降低人为操作损害

FUNCTION DESCRIPTION

功能说明

FUNCTION DESCRIPTION

Universal Trolley
Final Test Trolley
Probe Card Trolley

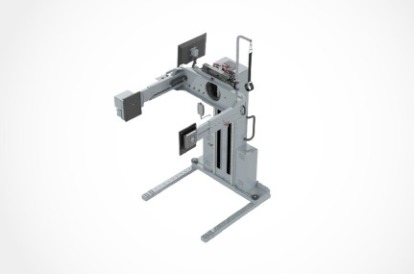

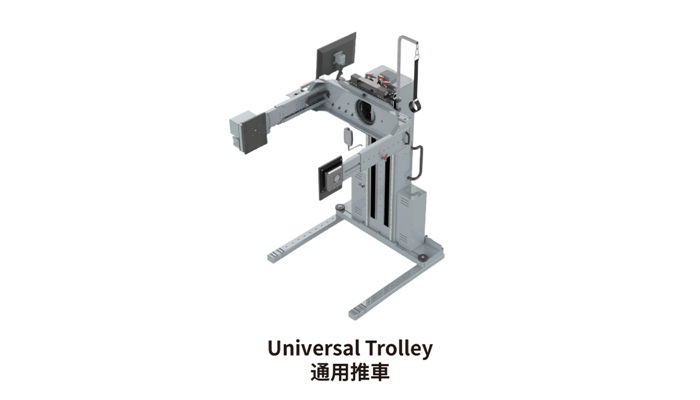

【Universal Trolley】

Model	TD1350 / Tiger200	TD1280 / Tiger400
Main Features	Flexible, compact and economic design Vertical movement (electrical) Testhead leveling at all positions
Weight Capacity	~ 250 kg / ~ 550 lbs	~ 400 kg / ~ 880 lbs
Standard Motions	Vertical travel (electrical) Side-to-side Linear in / out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in / out Twist Swing Tumble Theta
Compatible Testheads	SPEA DOT800 NI T2 LTXC Fusion MX Cohu Diamond X 1 Teradyne ETS364 Advantest V93000 ATH Others on request	NI T4 Advantest T5581 Teradyne Ultraflex 12 Slot Others on request

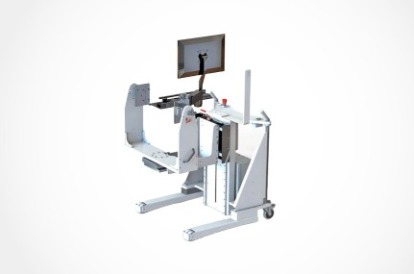

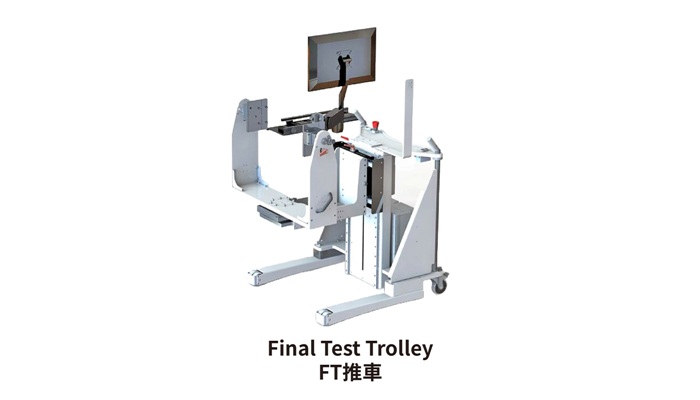

【Final Test Trolley】

Model	TD1255 / Tiger150	TD1275 / Tiger300	TD1285 / Tiger400	TD1295 / Tiger500
Main Features	Flexible, compact and economic design Vertical movement (electrical) Testhead leveling at all positions
Weight Capacity	~ 150 kg / ~ 330 lbs	~ 300 kg / ~ 660 lbs	~ 400 kg / ~ 880 lbs	~ 500 kg / ~ 1100 lbs
Standard Motions	Vertical travel (electrical) Side-to-side Linear in / out Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in / out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in / out Twist Swing Tumble Theta	Vertical travel (electrical) Side-to-side Linear in / out Twist Swing Tumble Theta
Compatible Testheads	Teradyne ETS364 NI T1 LTX Diamond X SPEA DOT400 Others on request	NI T2 Others on request	NI T4 Teradyne Microflex Others on request	NI T4 Teradyne Microflex Teradyne J750 Teradyne U-Flex 12 Slot Others on request

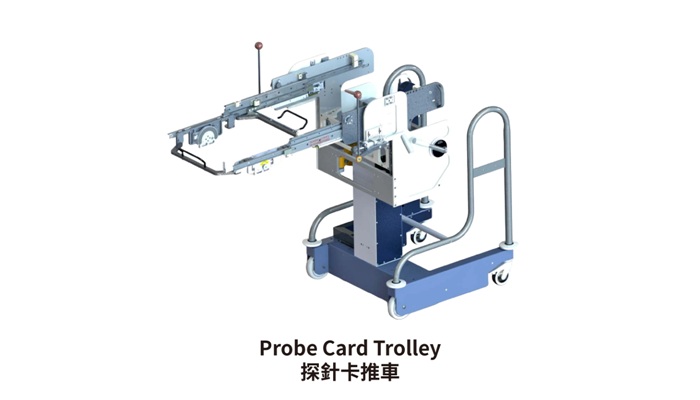

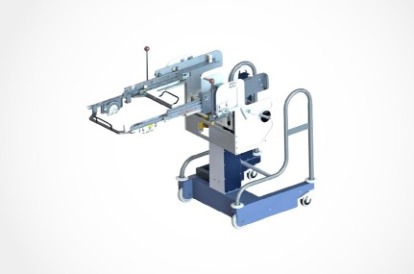

【Probe Card Trolley】

Model	TD1095	TD1090
Main Features	Error-free Load Board feeding and removal Reliable Load Board transport Damage prevention Retrofit to all common Probers Multipurpose usage One system per test floor required Ready for AGV (Automated Guided Vehicle) interaction	Error-free Probe card feeding and removal Reliable Probe card transport Damage prevention Retrofit to all common Probers Multipurpose usage One system per test floor required
